SHTR系列
低速1x9 TTL光模塊
速率：0~84M
封裝：1x9
電平：TTL
電壓：3.3V/5V
光接口：SC/FC/ST
- 產品詳情
- 硬件參數
- 軟件特性

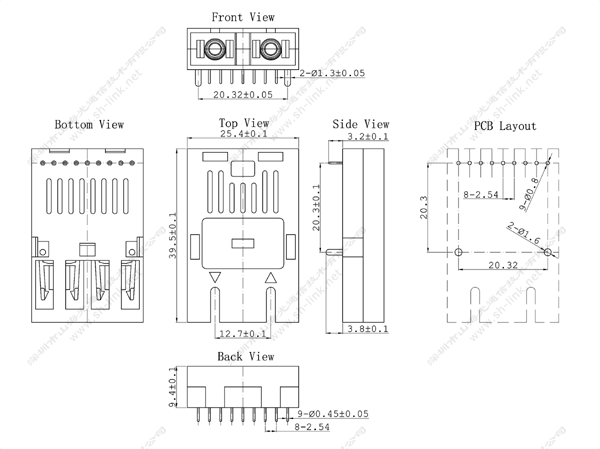

- 結構圖
- 訂購信息
SHTR系列低速1x9 TTL光模塊，采用1排9針封裝，支持0~84M速率，支持TTL電平信號，實現千兆以太網電信號和光信號的互相轉換，廣泛應用于串口通信設備上。
| 型號 | 封裝 | 速率 | 光纖 | 波長 | 距離 | 接口 | 電壓 | 溫度 |
| SHMTR8500 | 1x9 | 84M | MMF | 850nm | 550m | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHMTR3102 | 1x9 | 84M | MMF | 1310nm | 2km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHMTR3120 | 1x9 | 84M | SMF | 1310nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHMTR3140 | 1x9 | 84M | SMF | 1310nm | 40km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHMTR315520 | 1x9 BIDI | 84M | SMF | T1310/R1550nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHMTR553120 | 1x9 BIDI | 84M | SMF | T1550/R1310nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHMTR315540 | 1x9 BIDI | 84M | SMF | T1310/R1550nm | 40km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHMTR553140 | 1x9 BIDI | 84M | SMF | T1550/R1310nm | 40km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SH0TR8500 | 1x9 | 10M | MMF | 850nm | 550m | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SH0TR3102 | 1x9 | 10M | MMF | 1310nm | 2km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SH0TR3120 | 1x9 | 10M | SMF | 1310nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SH0TR3140 | 1x9 | 10M | SMF | 1310nm | 40km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SH0TR315520 | 1x9 BIDI | 10M | SMF | T1310/R1550nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SH0TR553120 | 1x9 BIDI | 10M | SMF | T1550/R1310nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SH0TR315540 | 1x9 BIDI | 10M | SMF | T1310/R1550nm | 40km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SH0TR553140 | 1x9 BIDI | 10M | SMF | T1550/R1310nm | 40km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHLTR8500 | 1x9 | 2M | MMF | 850nm | 550m | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHLTR3102 | 1x9 | 2M | MMF | 1310nm | 2km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHLTR3120 | 1x9 | 2M | SMF | 1310nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHLTR3140 | 1x9 | 2M | SMF | 1310nm | 40km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHLTR315520 | 1x9 BIDI | 2M | SMF | T1310/R1550nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHLTR553120 | 1x9 BIDI | 2M | SMF | T1550/R1310nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHLTR315540 | 1x9 BIDI | 2M | SMF | T1310/R1550nm | 40km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHLTR553140 | 1x9 BIDI | 2M | SMF | T1550/R1310nm | 40km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SH1TR8500 | 1x9 | 1M | MMF | 850nm | 550m | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SH1TR3102 | 1x9 | 1M | MMF | 1310nm | 2km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SH1TR3120 | 1x9 | 1M | SMF | 1310nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SH1TR315520 | 1x9 BIDI | 1M | SMF | T1310/R1550nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SH1TR553120 | 1x9 BIDI | 1M | SMF | T1550/R1310nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHKTR8500 | 1x9 | 500K | MMF | 850nm | 550m | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHKTR3102 | 1x9 | 500K | MMF | 1310nm | 2km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHKTR3120 | 1x9 | 500K | SMF | 1310nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHKTR315520 | 1x9 BIDI | 500K | SMF | T1310/R1550nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHKTR553120 | 1x9 BIDI | 500K | SMF | T1550/R1310nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
不涉及
| 型號 | 封裝 | 速率 | 光纖 | 波長 | 距離 | 接口 | 電壓 | 溫度 |
| SHMTR8500 | 1x9 | 84M | MMF | 850nm | 550m | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHMTR3102 | 1x9 | 84M | MMF | 1310nm | 2km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHMTR3120 | 1x9 | 84M | SMF | 1310nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHMTR3140 | 1x9 | 84M | SMF | 1310nm | 40km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHMTR315520 | 1x9 BIDI | 84M | SMF | T1310/R1550nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHMTR553120 | 1x9 BIDI | 84M | SMF | T1550/R1310nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHMTR315540 | 1x9 BIDI | 84M | SMF | T1310/R1550nm | 40km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHMTR553140 | 1x9 BIDI | 84M | SMF | T1550/R1310nm | 40km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SH0TR8500 | 1x9 | 10M | MMF | 850nm | 550m | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SH0TR3102 | 1x9 | 10M | MMF | 1310nm | 2km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SH0TR3120 | 1x9 | 10M | SMF | 1310nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SH0TR3140 | 1x9 | 10M | SMF | 1310nm | 40km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SH0TR315520 | 1x9 BIDI | 10M | SMF | T1310/R1550nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SH0TR553120 | 1x9 BIDI | 10M | SMF | T1550/R1310nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SH0TR315540 | 1x9 BIDI | 10M | SMF | T1310/R1550nm | 40km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SH0TR553140 | 1x9 BIDI | 10M | SMF | T1550/R1310nm | 40km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHLTR8500 | 1x9 | 2M | MMF | 850nm | 550m | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHLTR3102 | 1x9 | 2M | MMF | 1310nm | 2km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHLTR3120 | 1x9 | 2M | SMF | 1310nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHLTR3140 | 1x9 | 2M | SMF | 1310nm | 40km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHLTR315520 | 1x9 BIDI | 2M | SMF | T1310/R1550nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHLTR553120 | 1x9 BIDI | 2M | SMF | T1550/R1310nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHLTR315540 | 1x9 BIDI | 2M | SMF | T1310/R1550nm | 40km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHLTR553140 | 1x9 BIDI | 2M | SMF | T1550/R1310nm | 40km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SH1TR8500 | 1x9 | 1M | MMF | 850nm | 550m | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SH1TR3102 | 1x9 | 1M | MMF | 1310nm | 2km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SH1TR3120 | 1x9 | 1M | SMF | 1310nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SH1TR315520 | 1x9 BIDI | 1M | SMF | T1310/R1550nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SH1TR553120 | 1x9 BIDI | 1M | SMF | T1550/R1310nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHKTR8500 | 1x9 | 500K | MMF | 850nm | 550m | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHKTR3102 | 1x9 | 500K | MMF | 1310nm | 2km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHKTR3120 | 1x9 | 500K | SMF | 1310nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHKTR315520 | 1x9 BIDI | 500K | SMF | T1310/R1550nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHKTR553120 | 1x9 BIDI | 500K | SMF | T1550/R1310nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
