SHTR系列
百兆1x9光模塊
速率：100M
封裝：1x9
電平：PECL
電壓：3.3V/5V
光接口：SC/FC/ST
- 產品詳情
- 硬件參數
- 軟件特性

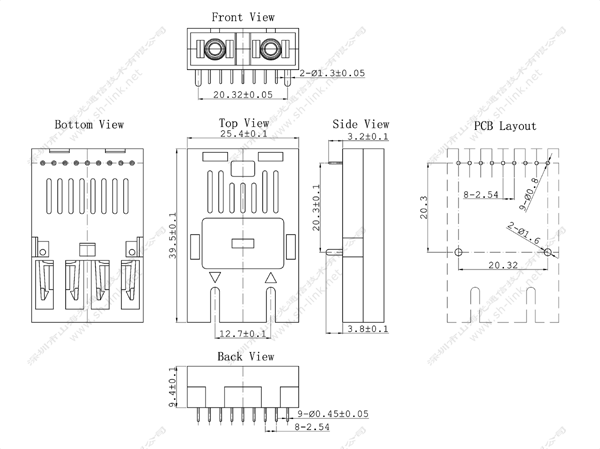

- 結構圖
- 訂購信息
SHTR系列百兆1x9光模塊，采用1排9針封裝，支持100M速率，支持pecl電平信號，實現百兆以太網電信號和光信號的互相轉換，廣泛應用于百兆以太網網絡設備上。
| 型號 | 封裝 | 速率 | 光纖 | 波長 | 距離 | 接口 | 電壓 | 溫度 |
| SHTR8500 | 1x9 | 100M | MMF | 850nm | 550m | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR3102 | 1x9 | 100M | MMF | 1310nm | 2km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR3120 | 1x9 | 100M | SMF | 1310nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR3140 | 1x9 | 100M | SMF | 1310nm | 40km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR3160 | 1x9 | 100M | SMF | 1310nm | 60km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR5580 | 1x9 | 100M | SMF | 1550nm | 80km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR55A0 | 1x9 | 100M | SMF | 1550nm | 100km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR55A2 | 1x9 | 100M | SMF | 1550nm | 120km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR315502 | 1x9 BIDI | 100M | MMF | T1310/R1550nm | 2km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR553102 | 1x9 BIDI | 100M | SMF | T1550/R1310nm | 2km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR315520 | 1x9 BIDI | 100M | SMF | T1310/R1550nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR553120 | 1x9 BIDI | 100M | SMF | T1550/R1310nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR315540 | 1x9 BIDI | 100M | SMF | T1310/R1550nm | 40km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR553140 | 1x9 BIDI | 100M | SMF | T1550/R1310nm | 40km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR315560 | 1x9 BIDI | 100M | SMF | T1310/R1550nm | 60km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR553160 | 1x9 BIDI | 100M | SMF | T1550/R1310nm | 60km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR495580 | 1x9 BIDI | 100M | SMF | T1490/R1550nm | 80km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR554980 | 1x9 BIDI | 100M | SMF | T1550/R1490nm | 80km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR4955A0 | 1x9 BIDI | 100M | SMF | T1490/R1550nm | 100km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR5549A0 | 1x9 BIDI | 100M | SMF | T1550/R1490nm | 100km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR4955A2 | 1x9 BIDI | 100M | SMF | T1490/R1550nm | 120km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR5549A2 | 1x9 BIDI | 100M | SMF | T1550/R1490nm | 120km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHT3120 | 1x9 單發 | 100M | SMF | 1310nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHT5520 | 1x9 單發 | 100M | SMF | 1550nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHT2720 | 1x9 單發 | 100M | SMF | 1270nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHT4920 | 1x9 單發 | 100M | SMF | 1490nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHR3120 | 1x9 單收 | 100M | SMF | 1310nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHR5520 | 1x9 單收 | 100M | SMF | 1550nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHR2720 | 1x9 單收 | 100M | SMF | 1270nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHR4920 | 1x9 單收 | 100M | SMF | 1490nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
不涉及
| 型號 | 封裝 | 速率 | 光纖 | 波長 | 距離 | 接口 | 電壓 | 溫度 |
| SHTR8500 | 1x9 | 100M | MMF | 850nm | 550m | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR3102 | 1x9 | 100M | MMF | 1310nm | 2km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR3120 | 1x9 | 100M | SMF | 1310nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR3140 | 1x9 | 100M | SMF | 1310nm | 40km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR3160 | 1x9 | 100M | SMF | 1310nm | 60km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR5580 | 1x9 | 100M | SMF | 1550nm | 80km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR55A0 | 1x9 | 100M | SMF | 1550nm | 100km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR55A2 | 1x9 | 100M | SMF | 1550nm | 120km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR315502 | 1x9 BIDI | 100M | MMF | T1310/R1550nm | 2km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR553102 | 1x9 BIDI | 100M | SMF | T1550/R1310nm | 2km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR315520 | 1x9 BIDI | 100M | SMF | T1310/R1550nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR553120 | 1x9 BIDI | 100M | SMF | T1550/R1310nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR315540 | 1x9 BIDI | 100M | SMF | T1310/R1550nm | 40km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR553140 | 1x9 BIDI | 100M | SMF | T1550/R1310nm | 40km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR315560 | 1x9 BIDI | 100M | SMF | T1310/R1550nm | 60km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR553160 | 1x9 BIDI | 100M | SMF | T1550/R1310nm | 60km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR495580 | 1x9 BIDI | 100M | SMF | T1490/R1550nm | 80km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR554980 | 1x9 BIDI | 100M | SMF | T1550/R1490nm | 80km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR4955A0 | 1x9 BIDI | 100M | SMF | T1490/R1550nm | 100km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR5549A0 | 1x9 BIDI | 100M | SMF | T1550/R1490nm | 100km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR4955A2 | 1x9 BIDI | 100M | SMF | T1490/R1550nm | 120km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHTR5549A2 | 1x9 BIDI | 100M | SMF | T1550/R1490nm | 120km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHT3120 | 1x9 單發 | 100M | SMF | 1310nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHT5520 | 1x9 單發 | 100M | SMF | 1550nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHT2720 | 1x9 單發 | 100M | SMF | 1270nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHT4920 | 1x9 單發 | 100M | SMF | 1490nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHR3120 | 1x9 單收 | 100M | SMF | 1310nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHR5520 | 1x9 單收 | 100M | SMF | 1550nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHR2720 | 1x9 單收 | 100M | SMF | 1270nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
| SHR4920 | 1x9 單收 | 100M | SMF | 1490nm | 20km | SC/FC/ST | 3.3V/5V | 商業級/工業級 |
